12V 105AH Lithium Ion Battery
Model #: CX105 SKU: 12-LIB-105 Weight: 32 lbs
Product Details
This is a special order item, lead time is 3-4 weeks to arrive from the time you place your order
The Chargex® CX105 - 12V 105AH Lithium Ion Battery features the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology.

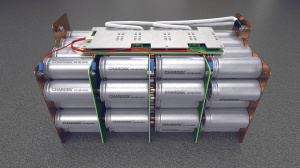

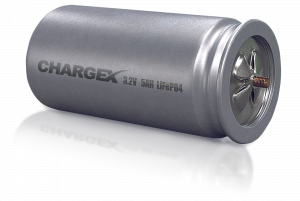

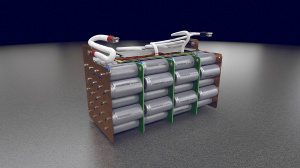

Designed for Deep Cycle applications, the CX105 is engineered with our - High Output 3.2V Stainless Steel LiFePO4 Cells that are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method. The CX105 is Plug and Play for any application that currently uses lead acid, gel or agm batteries.
The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the Chargex CX105, one of the world's safest and most advanced lithium batteries.
The Chargex® CX105 comes with the industries leading - Lifetime Warranty.
POWER & ENERGY
THE ELECTRIC ADVANTAGE
| Nominal Voltage | 12.8V |
| Charge Voltage | 14.4V - 14.6V |
| Cold Cranking Amps | 1050A |
| Continuous Charge / Discharge Rate | 105A |
| Capacity (amp hours) | 105AH |
| Capacity (watts) | 1344W |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
SIZE & WEIGHT
ADVANTAGE
| Model | CX105 |
| Group Size | 65 |
| Weight | 30 Lbs |
| Length | 12.6" |
| Width | 7.6" |
| Height | 7.75" |
TECHNOLOGY
ADVANTAGE
| Usable Capacity (AH) | 108AH |
| Depth of Discharge | >100% DOD |
| Reserve Minutes @ 20A | 300 min |
| Reserve Minutes @ 50A | 120 min |
| Self Discharge | <3% per mo |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cell Type | Cylindrical |
| Modular | Series or Parallel Connection |
SAFETY & PROTECTION
ADVANTAGE
| Built in Automatic Battery Protection System | Internal |
| Automatic Low Voltage Disconnect | 8V |
| Automatic Short Circuit Protection | Instant |
| Automatic Over Voltage Protection | 15.8V |
| Automatic Reverse Polarity Protection | Instant |
| Internal Cell Thermal Safety Fuse | Yes |
| Flame Retardant Electrolyte | Yes |
| Length Way Circuit Boards | Yes |
| Automatic Internal Cell Balancing | Yes |
| Automatic Fault Recovery | Yes |
| Explosion Proof Stainless Steel Cells | Yes |
TEMPERATURE PERFORMANCE
ADVANTAGE
| Celsius | Fahrenheit | Usable Capacity |
| 60 | 140 | 103% |
| 50 | 122 | 102% |
| 40 | 104 | 100% |
| 30 | 86 | 100% |
| 20 | 68 | 98% |
| 10 | 50 | 92% |
| 0 | 32 | 83% |
| -10 | 14 | 80% |
| -20 | -4 | 70% |
| -30 | -22 | 60% |
| -40 | -40 | 10% |
| -50 | -58 | 0% |
FAST SHIPPING
ADVANTAGE
| Standard Shipping | UPS GROUND |
| Expedited Air Shipping | UPS WORLDWIDE EXPRESS |
| Shipping Time | 3-4 Week manufacturing lead time |
This Product Is Perfect For
Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.
This Group 65 - 12V 105AH Lithium Ion Battery is the perfect replacement from a group 65 AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement" meaning all you have to do is take out your old group 65 battery and place the Lithium Battery in the same way.
