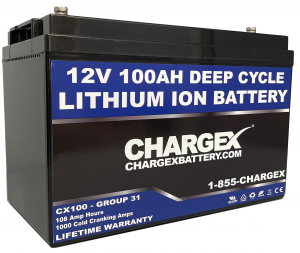

12V 100AH Lithium Ion Battery with 12V 10A Lithium Battery Charger

Model #: CX100/CXC1210 SKU: 12-LIB-100, CXC1210 Weight: 30 lbs

Quantity

Product Details

IN STOCK

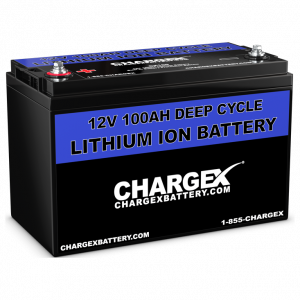

The Chargex® CX100 - 12V 100AH Lithium Ion Battery features the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology.

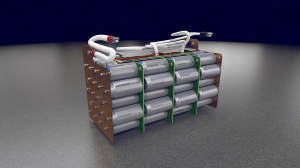

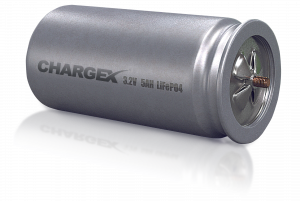

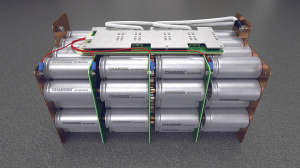

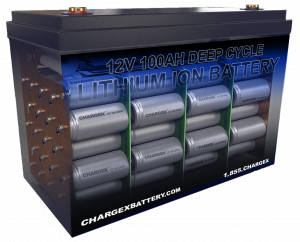

Designed for Deep Cycle applications, the CX100 is engineered with our - High Output 3.2V Stainless Steel LiFePO4 Cells that are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method. The CX100 is Plug and Play for any application that currently uses lead acid, gel or agm batteries.

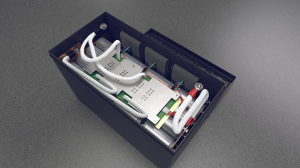

The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the Chargex CX100, one of the world's safest and most advanced lithium batteries.


The Chargex® CX100 comes with the industries leading - Lifetime Warranty.


What's in the box?

12V 100AH Lithium Ion BatteryLithium Ion Battery Charger

12V100AH Lithium Ion Battery and free 12V 10A Lithium Ion Battery Charger


12V 300AH Lithium Battery Data Sheet
CX100 - 12V Lithium Ion Battery Data Sheet

12V 300AH Lithium Battery Data Sheet
CXC1210- 12V 10A Lithium Battery Charger Data Sheet

Material Safety Data Sheet  (MSDS)



POWER & ENERGY
THE ELECTRIC ADVANTAGE

Nominal Voltage 12.8V
Charge Voltage 14.4V - 14.6V
Peak Discharge (5 Sec) 1000A
Continuous Charge / Discharge Rate 100A
Capacity (amp hours) 100AH
Capacity (watts) 1280W
Chemistry Lithium Iron Phosphate (LiFePO4)


SIZE & WEIGHT
ADVANTAGE

Model CX100
Group Size 31
Weight 31 Lbs
Length 12.75"
Width 6.75"
Height 8.7"


TECHNOLOGY
ADVANTAGE

Usable Capacity (AH) 108AH
Depth of Discharge >100% DOD
Reserve Minutes @ 20A 300 min
Reserve Minutes @ 50A 120 min
Self Discharge <3% per mo
Chemistry Lithium Iron Phosphate (LiFePO4)
Cell Type Cylindrical
Modular Series or Parallel Connection



SAFETY & PROTECTION
ADVANTAGE

Built in Automatic Battery Protection System        Internal
Automatic Low Voltage Disconnect 8V
Automatic Short Circuit Protection Instant
Automatic Over Voltage Protection 15.8V
Automatic Reverse Polarity Protection Instant
Internal Cell Thermal Safety Fuse Yes
Flame Retardant Electrolyte Yes
Length Way Circuit Boards Yes
Automatic Internal Cell Balancing Yes
Automatic Fault Recovery Yes
Explosion Proof Stainless Steel Cells Yes



TEMPERATURE PERFORMANCE
ADVANTAGE

Celsius Fahrenheit Usable Capacity
60 140 103%
50 122 102%
40 104 100%
30 86 100%
20 68 98%
10 50 92%
0 32 83%
-10 14 80%
-20 -4 70%
-30 -22 60%
-40 -40 10%
-50 -58 0%


SHIPPING
ADVANTAGE

Standard Shipping UPS GROUND
Expedited Air Shipping UPS WORLDWIDE EXPRESS
Shipping Time 24 HOURS



LIFETIME WARRANTY
ADVANTAGE

Repair or Replace First 5 Years
Repair or Pro Rate Life Time
Detailed Warranty Information Warranty



This Product Is Perfect For

Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.


This 12V 100AH Lithium Ion Battery is the perfect replacement from a group 31 AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement
" meaning all you have to do is take out your old group 31 battery and place the Lithium Battery in the same way.
