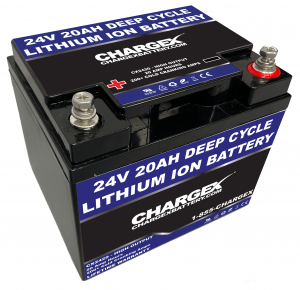

24V 20AH Lithium Ion Battery

Model #: CX2420 SKU: 24-LIB-20 Weight: 16 lbs

Product Details

The Chargex® CX2420 - 24V 20AH Lithium Ion Battery features the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology.

---

Designed for Deep Cycle applications, the CX2420 is engineered with our - High Output 3.2V Stainless Steel LiFePO4 Cells that are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method. The CX2420 is Plug and Play for any application that currently uses lead acid, gel or agm batteries.

---

The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the CHARGEX® CX2420, one of the world's safest and most advanced lithium batteries.

---

The CHARGEX® CX2420 comes with the industries leading - Lifetime Warranty.

---

CX2420 - 24V Lithium Ion Battery Data Sheet

LiFePO4 - Material Safety Data Sheet  (MSDS)

---

POWER & ENERGY
THE ELECTRIC ADVANTAGE

Nominal Voltage	25.6V
Charge Voltage	28.8V - 29.2V
Peak Discharge / Cranking Amps (5 Sec)	200A
Continuous Charge / Discharge Rate	20A
Capacity (amp hours)	20AH
Capacity (watts)	480W
Chemistry	Lithium Iron Phosphate (LiFePO4)

SIZE & WEIGHT
ADVANTAGE

Model	CX2420
Group Size	N/A
Weight	7.7 Lbs
Length	7.75"
Width	6.5"
Height	6.75"

TECHNOLOGY
ADVANTAGE

Usable Capacity (AH)	20AH
Depth of Discharge	>100% DOD
Reserve Minutes @ 20A	60 min
Self Discharge	<3% per mo
Chemistry	Lithium Iron Phosphate (LiFePO4)
Cell Type	Cylindrical
Modular	Series or Parallel Connection

SAFETY & PROTECTION
ADVANTAGE

Built in Automatic Battery Protection System	Internal
Automatic Low Voltage Disconnect	16V
Automatic Short Circuit Protection	Instant
Automatic Over Voltage Protection	31.6V
Automatic Reverse Polarity Protection	Instant
Internal Cell Thermal Safety Fuse	Yes
Flame Retardant Electrolyte	Yes
Length Way Circuit Boards	Yes
Automatic Internal Cell Balancing	Yes
Automatic Fault Recovery	Yes
Explosion Proof Stainless Steel Cells	Yes

TEMPERATURE PERFORMANCE
ADVANTAGE

Celsius	Fahrenheit	Usable Capacity
60	140	103%
50	122	102%
40	104	100%
30	86	100%
20	68	98%
10	50	92%
0	32	83%
-10	14	80%
-20	-4	70%
-30	-22	60%
-40	-40	10%
-50	-58	0%



FAST SHIPPING
ADVANTAGE

Standard Shipping	UPS GROUND
Expedited Air Shipping	UPS WORLDWIDE EXPRESS
Shipping Time	24 HOURS

LIFETIME WARRANTY
ADVANTAGE

Repair or Replace	First 5 Years
Repair or Pro Rate	Life Time
Detailed Warranty Information	Warranty

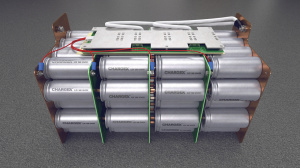

STAINLESS STEEL BOLTED CELLS FOR SUPERIOR STRENGTH
Stainless Steel Bolted Cells
Explosion Proof
BOLTED BMS

---

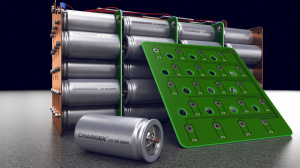

LENGTHWAY CIRCUIT BOARDS
Rigid Strength
Cell Balancing
Short Circuit Protection

---

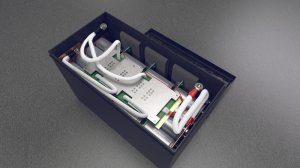

BUILT IN FULLY AUTOMATIC HEAVY DUTY BMS / BPS
Over Voltage Protection
Low Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
Automatic Cell Balancing

---

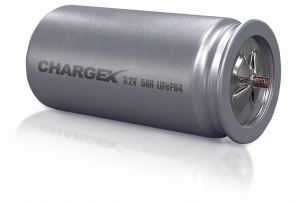

3.2V 5.5AH CHARGEX® STAINLESS STEEL LITHIUM IRON PHOSPHATE BATTERY CELL
Explosion Proof Stainless Steel
High Pressure Safety Vent
Flame Retardant Electrolyte Additive
Bolted for Superior Strength and Conductivity
Safe - LiFePO4 Lithium Iron Phosphate Chemistry

This 24V 20AH Lithium Ion Battery is the perfect replacement from an AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement" meaning all you have to do is take out your old battery and place the Lithium Battery in the same way.
