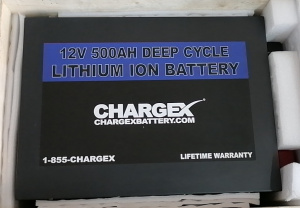

12V 500AH Lithium Ion Battery
Model #: CX500 SKU: 12-LIB-500 Weight: 210 lbs
Product Details
POWER & ENERGY
THE ELECTRIC ADVANTAGE
| Nominal Voltage |
12.8V |
| Charge Voltage |
14.4V - 14.6V |
| Peak Discharge (5 Sec) |
5000A |
| Continuous Charge / Discharge Rate |
60A/300A |
| Capacity (amp hours) |
500AH |
| Capacity (watts) |
6400W |
| Chemistry |
Lithium Iron Phosphate (LiFePO4) |
SIZE & WEIGHT
ADVANTAGE
| Model |
CX500 |
| Group Size |
NA |
| Weight |
198.42Lbs |
| Length |
24" |
| Width |
18.94" |
| Height |
14.41" |
TECHNOLOGY
ADVANTAGE
| Usable Capacity (AH) |
500AH |
| Depth of Discharge |
>100% DOD |
| Reserve Minutes @ 20A |
1500 min |
| Reserve Minutes @ 50A |
600 min |
| Self Discharge |
<3% per mo |
| Chemistry |
Lithium Iron Phosphate (LiFePO4) |
| Cell Type |
Cylindrical |
| Modular |
Series or Parallel Connection |
SAFETY & PROTECTION
ADVANTAGE
| Built in Automatic Battery Protection System |
Internal |
| Automatic Low Voltage Disconnect |
8V |
| Automatic Short Circuit Protection |
Instant |
| Automatic Over Voltage Protection |
15.8V |
| Automatic Reverse Polarity Protection |
Instant |
| Internal Cell Thermal Safety Fuse |
Yes |
| Flame Retardant Electrolyte |
Yes |
| Length Way Circuit Boards |
Yes |
| Automatic Internal Cell Balancing |
Yes |
| Automatic Fault Recovery |
Yes |
| Explosion Proof Stainless Steel Cells |
Yes |
TEMPERATURE PERFORMANCE
ADVANTAGE
| Celsius |
Fahrenheit |
Usable Capacity |
| 60 |
140 |
103% |
| 50 |
122 |
102% |
| 40 |
104 |
100% |
| 30 |
86 |
100% |
| 20 |
68 |
98% |
| 10 |
50 |
92% |
| 0 |
32 |
83% |
| -10 |
14 |
80% |
| -20 |
-4 |
70% |
| -30 |
-22 |
60% |
| -40 |
-40 |
10% |
| -50 |
-58 |
0% |
SHIPPING
ADVANTAGE
| Standard Shipping |
UPS GROUND |
| Expedited Air Shipping |
UPS WORLDWIDE EXPRESS |
| Shipping Time |
24 HOURS |
LIFETIME WARRANTY
ADVANTAGE
| Repair or Replace |
First 5 Years |
| Repair or Pro Rate |
Life Time |
| Detailed Warranty Information |
Warranty |
This Product Is Perfect For
Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.
This 12V 500AH Lithium Ion Battery is the perfect replacement from an AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement" meaning all you have to do is take out your old battery and place the Lithium Battery in the same way.
