12V 300AH Lithium Ion Battery 4D

Model #: CX3004D SKU: 12-LIB-300-4D Weight: 95 lbs

Price $2,999.99 $3,499.99 +Add to wishlist +Add to gift registry

Product Details

Ideal for Motorhomes, Travel Trailers, Fifth Wheels, Yachts, Trolling Motors, Off Grid Solar, and Other Deep Cycle or Starting Applications.

This battery features an automatic built in battery protection system (BPS) that keeps the battery running at peak performance and protects the cells for thousands of cycles. The CX3004D is plug and play for any application that currently uses a lead acid, gel or agm battery. Simply take out your old battery, put in the Smart Battery, connect the terminals and you are ready to go.

POWER & ENERGY

THE ELECTRIC ADVANTAGE

Nominal Voltage	12.8V
Charge Voltage	14.4V - 14.6V
Cold Cranking Amps / Peak Discharge (5 Sec)	3000A
Continuous Charge / Discharge Rate	200A
Capacity (amp hours)	324AH
Capacity (watt hours)	>3888WH

SIZE & WEIGHT
ADVANTAGE

Model	CX3004D
Group Size	4D
Weight	95 Lbs
Length	19.25"
Width	9.3"
Height	8.58"

TECHNOLOGY
ADVANTAGE

Usable Capacity (AH)	324AH
Depth of Discharge	100% DOD
Reserve Minutes @ 20A	900 min
Reserve Minutes @ 50A	360 min
Self Discharge	<1% per mo

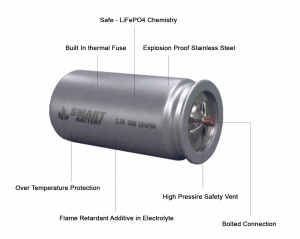

Chemistry	Lithium Iron Phosphate (LiFePO4)
Cell Type	Cylindrical
Modular	Series or Parallel Connection

SAFETY & PROTECTION
ADVANTAGE

Built in Automatic Battery Protection System	Internal
Automatic Low Voltage Disconnect	8V
Automatic Short Circuit Protection	Instant
Automatic Over Voltage Protection	15.8V
Automatic Reverse Polarity Protection	Instant
Internal Cell Thermal Safety Fuse	Yes
Flame Retardant Electrolyte	Yes
Length Way Circuit Boards	Yes
Automatic Internal Cell Balancing	Yes
Automatic Fault Recovery	Yes
Explosion Proof Stainless Steel Cells	Yes
