36V 80AH Lithium Battery Kit Chargex®

Model #: CXK3680 SKU: 36-LIB-80-K Weight: 90 lbs

Price $2,999.99 $3,549.96 +Add to wishlist +Add to gift registry

Product Details

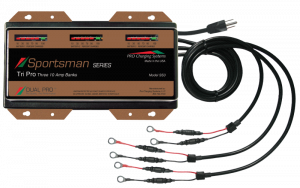

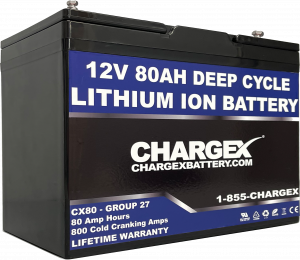

The Chargex® CXK3680 - Is a 36V 80AH Lithium Ion Battery Kit featuring three 12V 80AH Lithium Ion Batteries and a Free DP-SS3 3 Bank 10A Charger compatible with the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology.

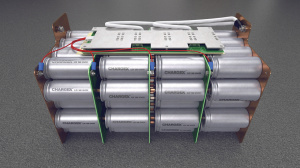

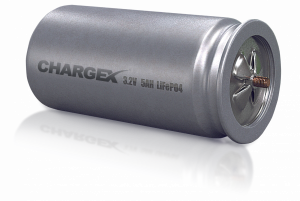

Designed for Marine & RV applications, the CXK3680 is engineered to handle extreme vibration and is Plug and Play for any application that currently uses lead acid, gel or agm batteries. Our High Output 3.2V Stainless Steel LiFePO4 Cells are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method.

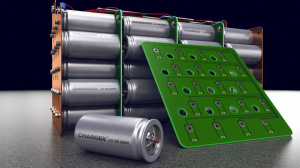

The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the Chargex CXK3680, one of the world's safest and most advanced lithium batteries.

The Chargex® CXK3680 comes with the industries leading - Lifetime Warranty.

POWER & ENERGY
THE ELECTRIC ADVANTAGE

Nominal Voltage	(12.8V x3) 38.4V
Charge Voltage	14.4V - 14.6V
Peak Discharge (5 Sec)	800A
Continuous Charge / Discharge Rate	80A
Capacity (amp hours)	80AH
Capacity (watts)	960W
Chemistry	Lithium Iron Phosphate (LiFePO4)

SIZE & WEIGHT
ADVANTAGE

Model	CXK3680
Group Size	27
Weight	28LBs x3 85Lbs
Length	12.75"
Width	6.88"
Height	9.88"

TECHNOLOGY
ADVANTAGE

Usable Capacity (AH)	86.4AH
Depth of Discharge	>100% DOD
Reserve Minutes @ 20A	240 min
Reserve Minutes @ 50A	90 min
Self Discharge	<3% per mo
Chemistry	Lithium Iron Phosphate (LiFePO4)
Cell Type	Cylindrical
Modular	Series or Parallel Connection

SAFETY & PROTECTION
ADVANTAGE

Built in Automatic Battery Protection System	Internal
Automatic Low Voltage Disconnect	30V
Automatic Short Circuit Protection	Instant
Automatic Over Voltage Protection	47.4V
Automatic Reverse Polarity Protection	Instant
Internal Cell Thermal Safety Fuse	Yes
Flame Retardant Electrolyte	Yes
Length Way Circuit Boards	Yes
Automatic Internal Cell Balancing	Yes
Automatic Fault Recovery	Yes
Explosion Proof Stainless Steel Cells	Yes

TEMPERATURE PERFORMANCE
ADVANTAGE

Celsius	Fahrenheit	Usable Capacity
60	140	103%
50	122	102%
40	104	100%
30	86	100%
20	68	98%
10	50	92%
0	32	83%
-10	14	80%
-20	-4	70%
-30	-22	60%
-40	-40	10%
-50	-58	0%

FAST SHIPPING
ADVANTAGE

Standard Shipping	UPS GROUND
Expedited Air Shipping	UPS WORLDWIDE EXPRESS
Shipping Time	24 HOURS On In Stock Products

LIFETIME WARRANTY
ADVANTAGE

Repair or Replace	First 5 Years
Repair or Pro Rate	Life Time
Detailed Warranty Information	Warranty

This Product Is Perfect For

Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.

This 36V 80AH Lithium Ion Battery is the perfect replacement from a group 27 AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement" meaning all you have to do is take out your old group 27 battery and place the Lithium Battery in the same way.
