12V 75AH Lithium Ion Battery
Model #: CX75 SKU: 12-LIB-75 Weight: 25 lbs
Product Details
IN STOCK
The Chargex® CX75 - 12V 75AH Lithium Ion Battery features the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology.

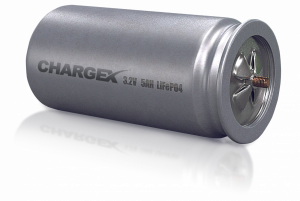

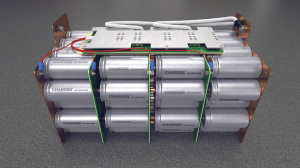

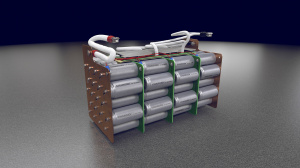

Designed for Marine & RV applications, the C75 is engineered to handle extreme vibration and is Plug and Play for any application that currently uses lead acid, gel or agm batteries. Our High Output 3.2V Stainless Steel LiFePO4 Cells are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method.

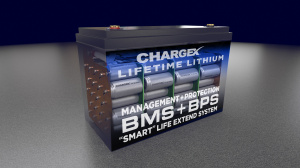

The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the Chargex CX75, one of the world's safest and most advanced lithium batteries.
The Chargex® CX75 comes with the industries leading - Lifetime Warranty.
CX75 - 12V Lithium Ion Battery Data Sheet
CX75 - Material Safety Data Sheet (MSDS)
POWER & ENERGY
THE ELECTRIC ADVANTAGE
| Nominal Voltage | 12.8V |
| Charge Voltage | 14.4V - 14.6V |
| Peak Discharge (5 Sec) | 750A |
| Continuous Charge / Discharge Rate | 75A |
| Capacity (amp hours) | 75AH |
| Capacity (watts) | 900W |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
SIZE & WEIGHT
ADVANTAGE
| Model | CX75 |
| Group Size | 24 |
| Weight | 25 Lbs |
| Length | 10.25" |
| Width | 6.75" |
| Height | 9.88" |
TECHNOLOGY
ADVANTAGE
| Usable Capacity (AH) | 75AH |
| Depth of Discharge | >100% DOD |
| Reserve Minutes @ 20A | 220 min |
| Reserve Minutes @ 75A | 60 min |
| Self Discharge | <3% per mo |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cell Type | Cylindrical |
| Modular | Series or Parallel Connection |
SAFETY & PROTECTION
ADVANTAGE
| Built in Automatic Battery Protection System | Internal |
| Automatic Low Voltage Disconnect | 8V |
| Automatic Short Circuit Protection | Instant |
| Automatic Over Voltage Protection | 15.8V |
| Automatic Reverse Polarity Protection | Instant |
| Internal Cell Thermal Safety Fuse | Yes |
| Flame Retardant Electrolyte | Yes |

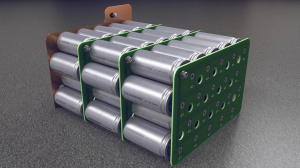

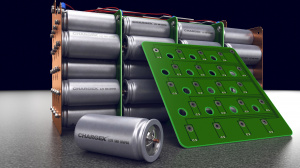

| Length Way Circuit Boards | Yes |
| Automatic Internal Cell Balancing | Yes |
| Automatic Fault Recovery | Yes |
| Explosion Proof Stainless Steel Cells | Yes |
TEMPERATURE PERFORMANCE
ADVANTAGE
| Celsius | Fahrenheit | Usable Capacity |
| 60 | 140 | 103% |
| 50 | 122 | 102% |
| 40 | 104 | 100% |
| 30 | 86 | 100% |
| 20 | 68 | 98% |
| 10 | 50 | 92% |
| 0 | 32 | 83% |
| -10 | 14 | 80% |
| -20 | -4 | 70% |
| -30 | -22 | 60% |
| -40 | -40 | 10% |
| -50 | -58 | 0% |
FAST SHIPPING
ADVANTAGE
| Standard Shipping | UPS GROUND |
| Expedited Air Shipping | UPS WORLDWIDE EXPRESS |
| Shipping Time | 24 HOURS |
LIFETIME WARRANTY
ADVANTAGE
| Repair or Replace | First 5 Years |
| Repair or Pro Rate | Life Time |
| Detailed Warranty Information | Warranty |
This Product Is Perfect For
Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.
This 12V 75AH Lithium Ion Battery is the perfect replacement from a group 24 AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement" meaning all you have to do is take out your old group 24 battery and place the Lithium Battery in the same way.
